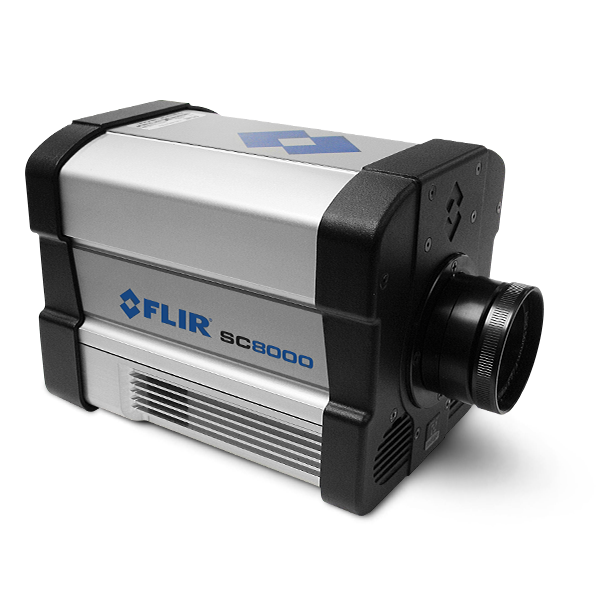

SC8000 Series MWIR Cameras
●THERMAL IMAGING IN HD
FLIR SC8000 series offers true megapixel resolution of up to 1,344 × 784 pixels. The highly sensitive cooled FLIR InSb detector produces ultra sharp thermal images from which the smallest details can be seen and measured.Four active preset operating modes provide adjustable integration times,embedded non-uniformity correction, bad pixel replacement, and window size adjustments. The FLIR readout provides digital data at 200 megapixels per second for extreme imaging flexibility.
●HIGH SPEED THERMAL IMAGING
FLIR SC8000 Series offers lightning fast frame rates with full resolution 14-bit data at 128 fps. Flexible FPA windowing provides for even higher frame rates.
●IMAGE TRIGGERING & TIME STAMPING
Advanced triggering options through external BNC input, IRIG time, or a software trigger; clock out single images, multiple images, or multiple images from multiple presets. IRIG-B timing is built directly into camera for on-board deterministic time-stamping of each frame.
●INTERFACE FLEXIBILITY
FLIR SC8000 has multiple simultaneous digital outputs including industrystandard CameraLink, Gigabit Ethernet, CoaXPress and HD-SDI.
●SOFTWARE
FLIR SC8000-series cameras work seamlessly together with FLIR
ResearchIR Max software enabling intuitive viewing, recording and advanced processing of the thermal data provided by the camera. A Software Developers Kit (SDK) is optionally available.
●MATHWORKS® MATLAB
Capture data directly into MathWorks® MATLAB software for advanced image analysis and processing.
●High image quality: up to 1,344 × 784 pixels
●Measures temperatures up to +2,000 C
●Close-up and zoom lenses available
●3.0 - 5.0 or 1.5 - 5.0 waveband options
●On-camera Radiance and Thermographic Calibration
