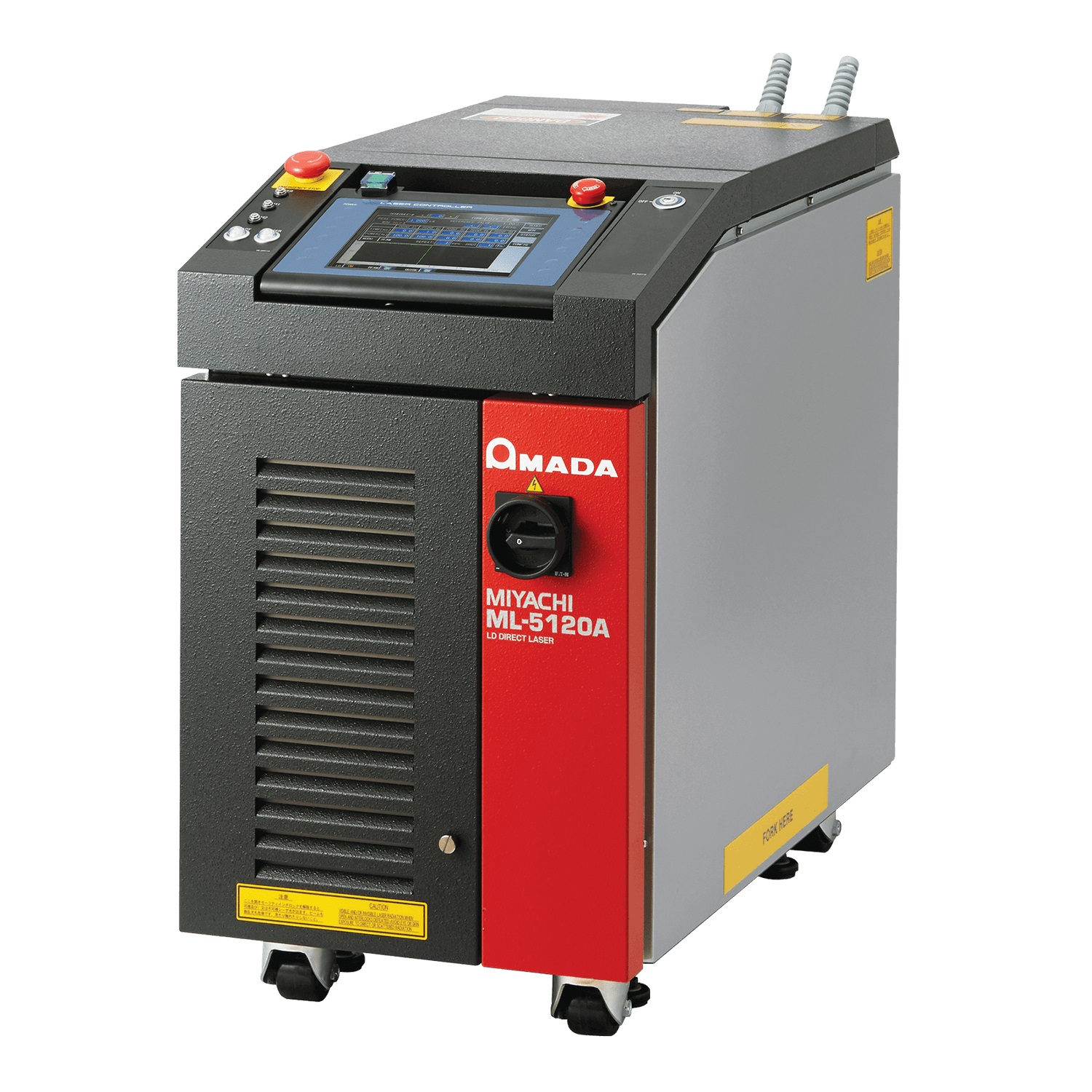

ML-5120A
ML-5120 is ideal for electronic circuit board assembly including laser soldering components to pads, and through-hole component laser soldering. It is also perfect for laser welding plastics where one piece is semi-transparent and other opaque, for example, welding a polycarbonate to acrylic.
Temperature feedback and control
915 nm operating wavelength interacts efficiently with metals and plastics

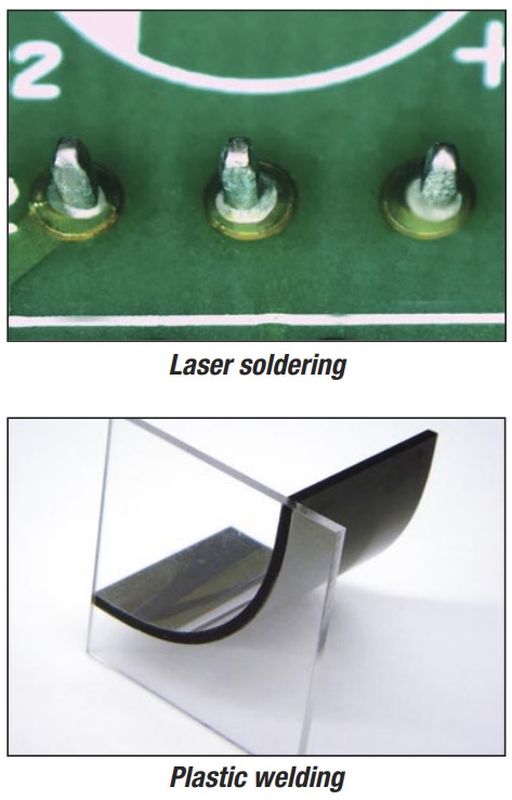

Laser weld plastics and laser solder
Optional fiber delivery system. Optical fiber delivery systems with 2 energy-sharing deliveries are available for increased productivity.
Equipped with a power monitor as standard equipment
Energy efficient and environmentally friendly process
Technology Direct Diode
Average Power 120 W
Max Rep Rate (pps) 5000
Communication RS-485
Input Power 200 - 240 VAC (+6% / -10%)
Single or 3 Phase Single phase
Size (L x W x H) Without Cooler: 35.5 in x 15.75 in x 27.5 in (900 mm x 400 mm x 696 mm)
With Cooler (option): 38.25 in x 15.75 in x 27.5 in (971 mm x 400 mm x 696 mm)
Weight Without Cooler: 221 lb (100 kg)
With Cooler (option): 265 lb (120 kg)
